Product overview

Park

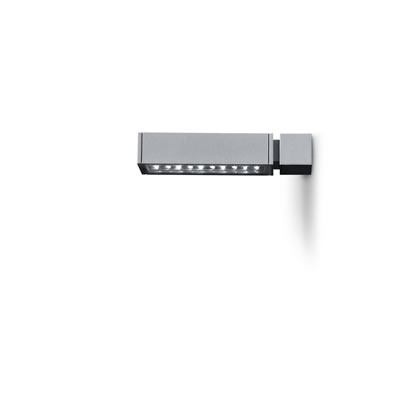

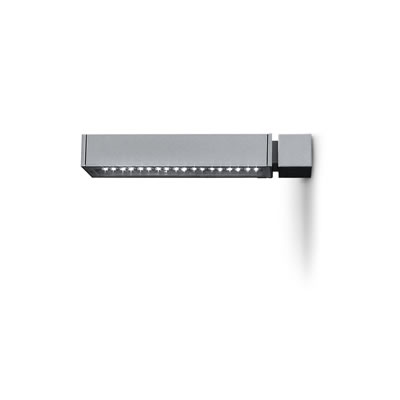

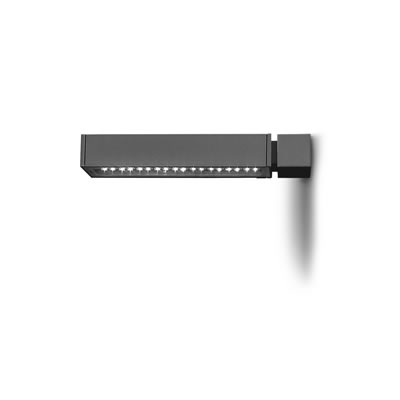

Park wall mounted version
Single park rectangular pole

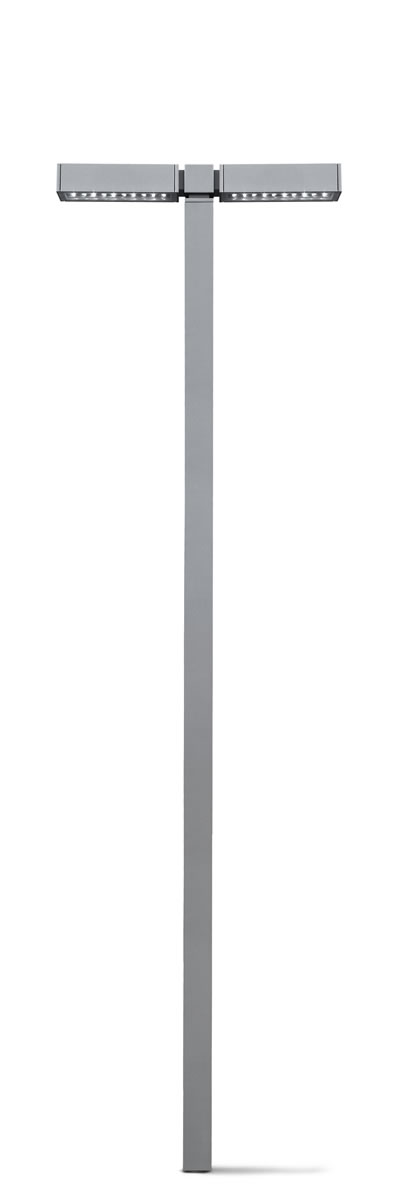

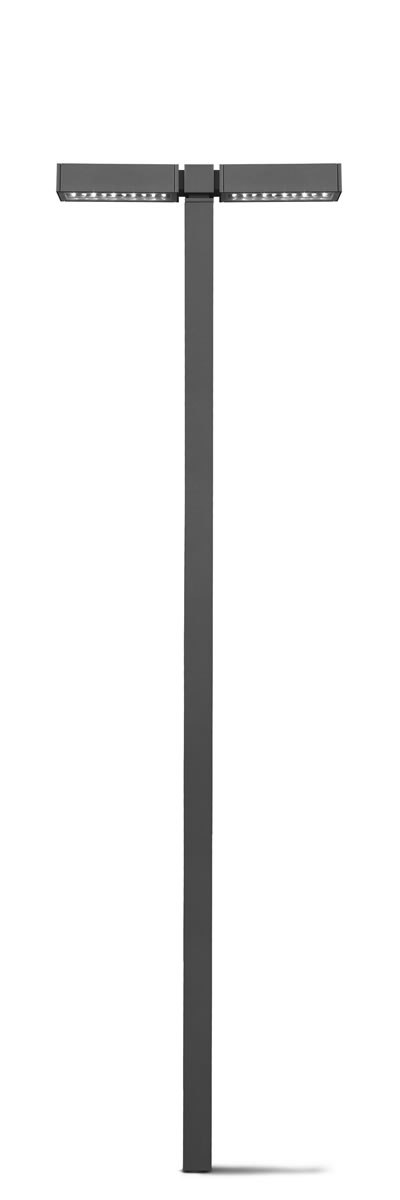

Double park rectangular pole

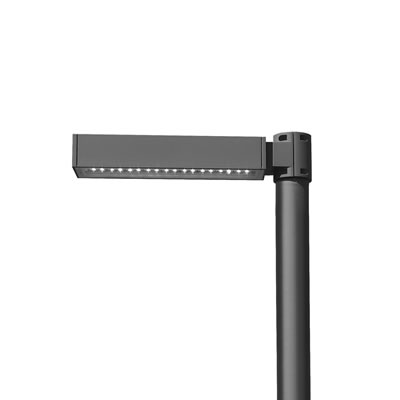

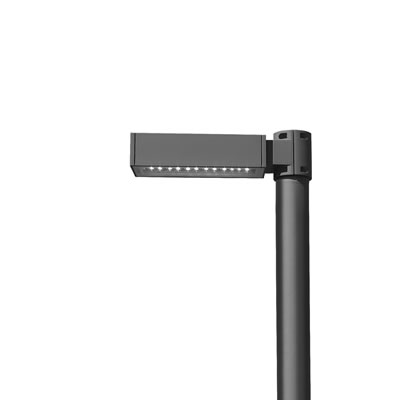

Park post top luminaire with ø 76mm spigot attachment
Filters
Rated luminaire luminous flux:
3422 lm - 7726 lm X
Colour temperature:
Standard colours:
Number of products found: 33
Reset
dimensions
PARK WALL MOUNTED VERSION
PLAZA/CAR PARK PATH OPTIC
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7132N 43.7W 3863lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7132W 43.7W 3642lm LED 3000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7132H 43.7W 3422lm LED 2700K CRI 80 220-240Vac DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
Suplied with 10kV surge protection devices “SPD”
dimensions
PARK WALL MOUNTED VERSION
PLAZA/CAR PARK PATH OPTIC
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7152N 77.9W 6966lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7152W 77.9W 6568lm LED 3000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7152H 77.9W 6170lm LED 2700K CRI 80 220-240Vac DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
Suplied with 10kV surge protection devices “SPD”
dimensions

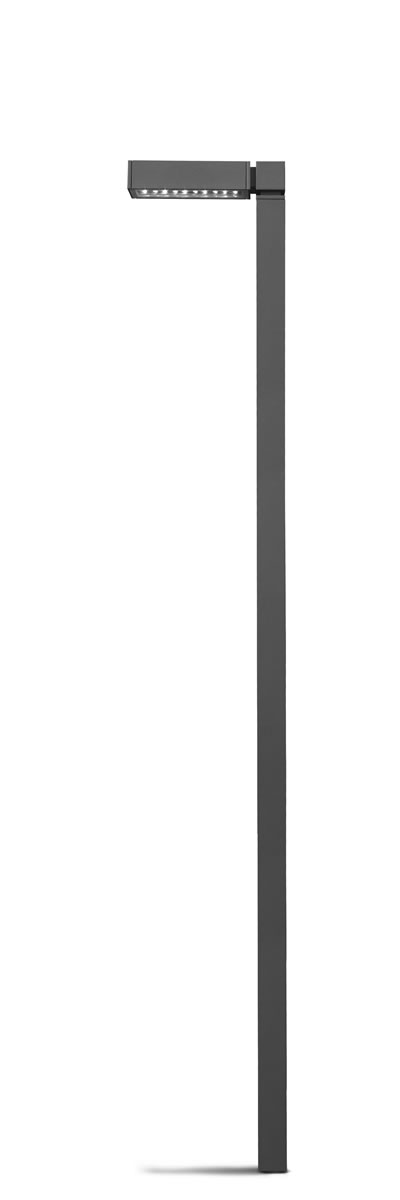

SINGLE PARK RECTANGULAR POLE
H=3500mm CYCLING PATH OPTIC
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7100N 44.1W 4266lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7100W 44.1W 4000lm LED 3000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7100H 44.1W 3733lm LED 2700K CRI 80 220-240Vac DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
Suplied with 10kV surge protection devices “SPD”
dimensions
SINGLE PARK RECTANGULAR POLE
H=3500mm PLAZA/CAR PATH OPTIC
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7102N 43.7W 3863lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7102W 43.7W 3642lm LED 3000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7102H 43.7W 3422lm LED 2700K CRI 80 220-240Vac DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
Suplied with 10kV surge protection devices “SPD”
dimensions

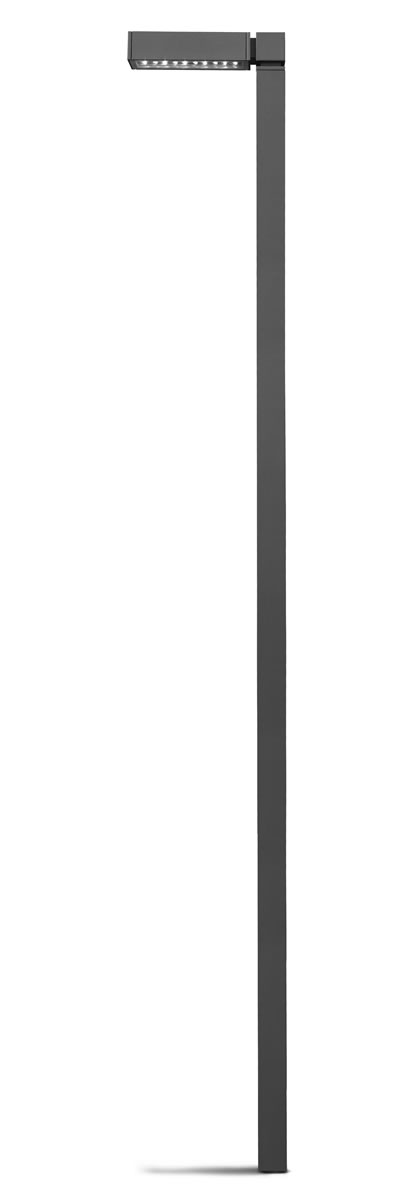

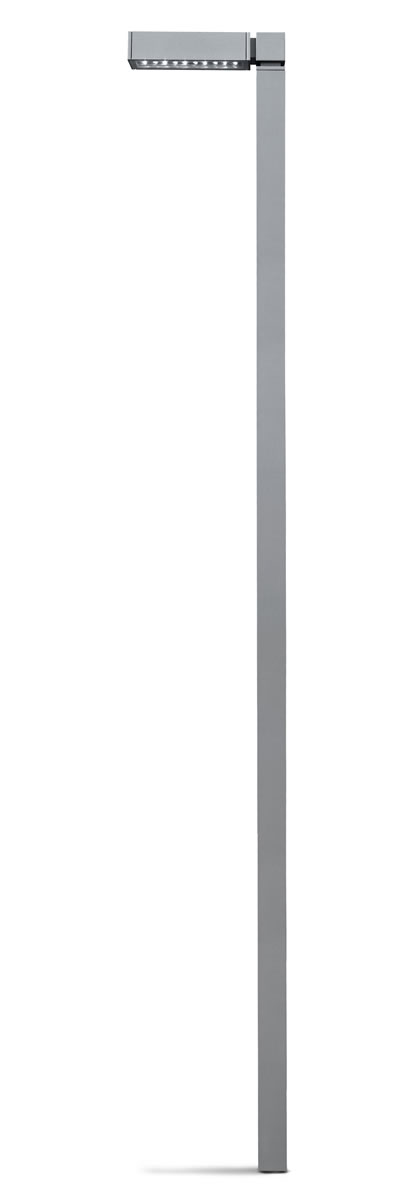

SINGLE PARK RECTANGULAR POLE
H=4500mm CYCLING PATH OPTIC
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7101N 44.1W 4266lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7101W 44.1W 4000lm LED 3000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7101H 44.1W 3733lm LED 2700K CRI 80 220-240Vac DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
Suplied with 10kV surge protection devices “SPD”
dimensions
SINGLE PARK RECTANGULAR POLE
H=4500mm PLAZA/CAR PATH OPTIC
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7103N 43.7W 3863lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7103W 43.7W 3642lm LED 3000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7103H 43.7W 3422lm LED 2700K CRI 80 220-240Vac DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
Suplied with 10kV surge protection devices “SPD”
dimensions
DOUBLE PARK RECTANGULAR POLE
H=3500mm PLAZA/CAR PATH OPTIC
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7112N 88.2W 7726lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7112W 88.2W 7284lm LED 3000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7112H 88.2W 6844lm LED 2700K CRI 80 220-240Vac DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
Suplied with 10kV surge protection devices “SPD”
dimensions

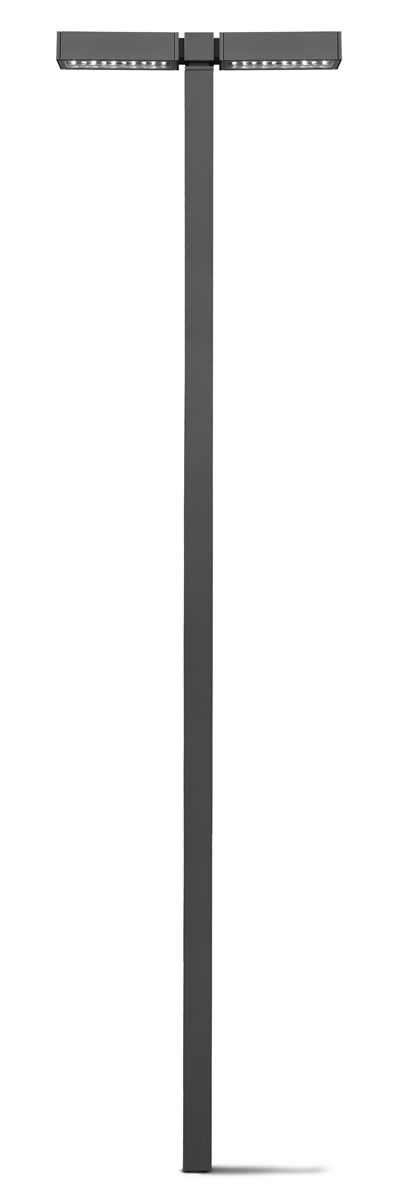

DOUBLE PARK RECTANGULAR POLE
H=4500mm PLAZA/CAR PATH OPTIC
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7113N 88.2W 7726lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7113W 88.2W 7284lm LED 3000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7113H 88.2W 6844lm LED 2700K CRI 80 220-240Vac DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
Suplied with 10kV surge protection devices “SPD”
dimensions

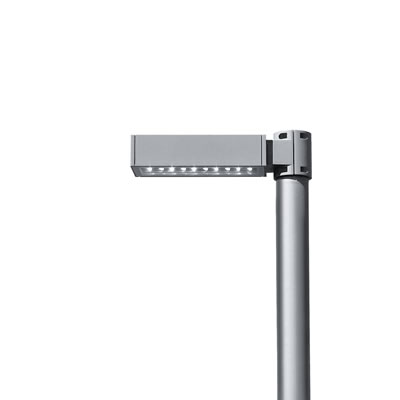

PARK POST TOP LUMINAIRE WITH Ø 76mm SPIGOT ATTACHMENT
CYCLING PATH OPTIC
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7120N 44.1W 4266lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7120W 44.1W 4000lm LED 3000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7120H 44.1W 3733lm LED 2700K CRI 80 220-240Vac DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
Suplied with 10kV surge protection devices “SPD”
dimensions
PARK POST TOP LUMINAIRE WITH Ø 76mm SPIGOT ATTACHMENT
PLAZA/CAR PATH OPTIC
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7122N 43.7W 3863lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7122W 43.7W 3642lm LED 3000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7122H 43.7W 3422lm LED 2700K CRI 80 220-240Vac DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
Suplied with 10kV surge protection devices “SPD”
dimensions

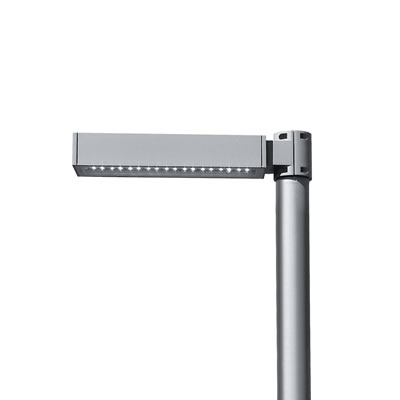

PARK POST TOP LUMINAIRE WITH Ø 76mm SPIGOT ATTACHMENT
PLAZA/CAR PATH OPTIC
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7142N 77.9W 6966lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7142W 77.9W 6568lm LED 3000K CRI 80 220-240Vac DALI2; PUSH .14.24
S.7142H 77.9W 6170lm LED 2700K CRI 80 220-240Vac DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
Suplied with 10kV surge protection devices “SPD”
