Focus

Rated luminaire luminous flux (lm):

124 lm - 8644 lm X

Colour temperature:

Tipo Control type:

Standard beams:

Standard colours:

Number of products found: 44

Reset


dimensions

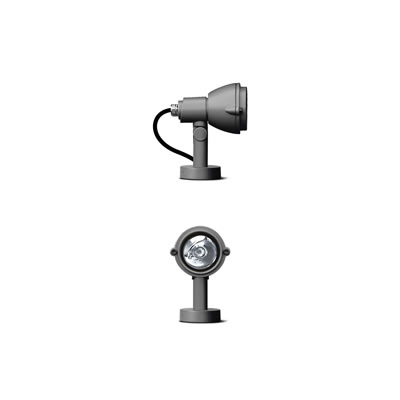

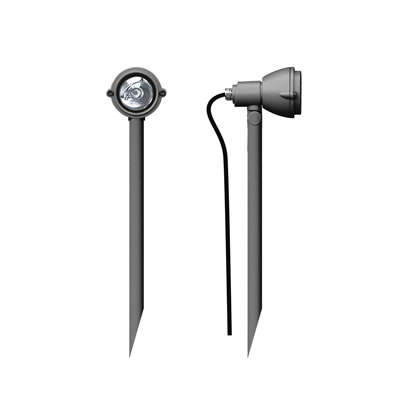

NANOFOCUS

Code	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.1100N	3°	3.8W	142lm	LED 4000K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1100W	3°	3.8W	135lm	LED 3000K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1100H	3°	3.8W	128lm	LED 2700K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1101N	10°	3.8W	141lm	LED 4000K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1101W	10°	3.8W	131lm	LED 3000K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1101H	10°	3.8W	124lm	LED 2700K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1102N	38°	3.8W	143lm	LED 4000K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1102W	38°	3.8W	133lm	LED 3000K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1102H	38°	3.8W	126lm	LED 2700K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24

Beam lenses available on request with no surcharge: 45°, 20°x40°

Colours on request with surchage: .01.07.09.14.20


dimensions

NANOFOCUS

Code	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.1103N	3°	3.8W	142lm	LED 4000K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1103W	3°	3.8W	135lm	LED 3000K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1103H	3°	3.8W	128lm	LED 2700K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1104N	10°	3.8W	141lm	LED 4000K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1104W	10°	3.8W	131lm	LED 3000K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1104H	10°	3.8W	124lm	LED 2700K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1105N	38°	3.8W	143lm	LED 4000K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1105W	38°	3.8W	133lm	LED 3000K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24
S.1105H	38°	3.8W	126lm	LED 2700K CRI 80	220-240Vac	NOT DIMMABLE (ON-OFF)	.24

Beam lenses available on request with no surcharge: 45°, 20°x40°

Colours on request with surchage: .01.07.09.14.20


dimensions

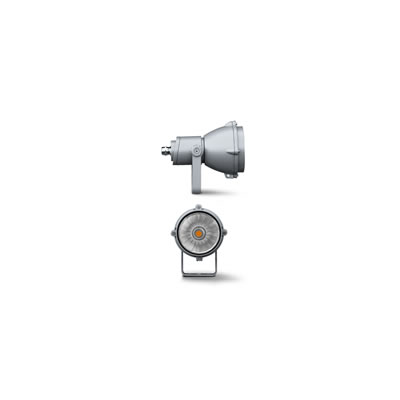

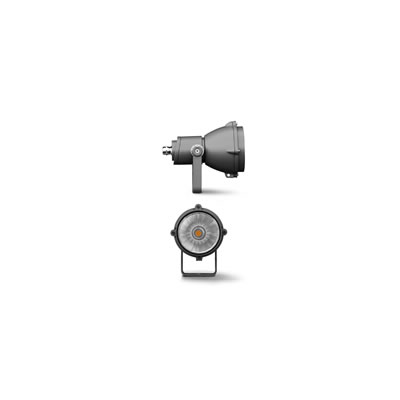

MICROFOCUS

Code	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.1110N	10°	18W	1376lm	COB 4000K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1110W	10°	18W	1311lm	COB 3000K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1110H	10°	18W	1245lm	COB 2700K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1111N	28°	18W	1444lm	COB 4000K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1111W	28°	18W	1376lm	COB 3000K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1111H	28°	18W	1307lm	COB 2700K CRI 90	220-240Vac	DALI2; PUSH	.14.24

Colours on request with surchage: .01.07.09.20


dimensions

MINIFOCUS

Code	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.1120N	9°	36W	2992lm	COB 4000K CRI 80	220-240Vac	DALI2; PUSH	.14.24
S.1120W	9°	36W	2850lm	COB 3000K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1120H	9°	36W	2707lm	COB 2700K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1121N	30°	36W	2980lm	COB 4000K CRI 80	220-240Vac	DALI2; PUSH	.14.24
S.1121W	30°	36W	2839lm	COB 3000K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1121H	30°	36W	2697lm	COB 2700K CRI 90	220-240Vac	DALI2; PUSH	.14.24

Colours on request with surchage: .01.07.09.20


dimensions

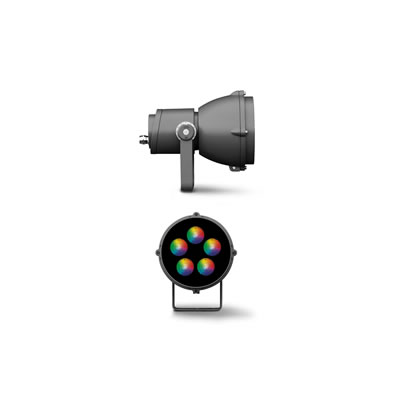

MINIFOCUS RGBW

230V DMX

Code	Beam	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.1125		33°	36.8W	1196lm	LED RGBW (W=3000K)	220-240Vac	DMX	.14.24

Colours on request with surchage: .01.07.09.20


dimensions

FOCUS

Code	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.1130N	9°	57W	4144lm	COB 4000K CRI 80	220-240Vac	DALI2; PUSH	.14.24
S.1130W	9°	57W	4302lm	COB 3000K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1130H	9°	57W	4086lm	COB 2700K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1131N	32°	57W	4185lm	COB 4000K CRI 80	220-240Vac	DALI2; PUSH	.14.24
S.1131W	32°	57W	4391lm	COB 3000K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1131H	32°	57W	4171lm	COB 2700K CRI 90	220-240Vac	DALI2; PUSH	.14.24

Colours on request with surchage: .01.07.09.20


dimensions

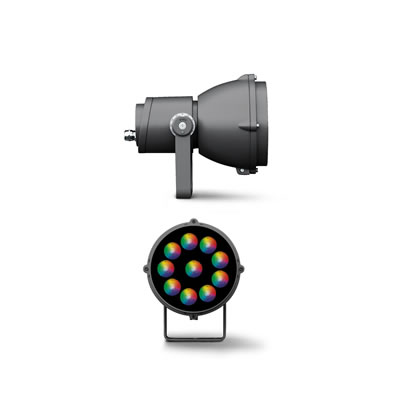

FOCUS RGBW

230V DMX

Code	Beam	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.1135		34°	66.8W	2414lm	LED RGBW (W=3000K)	220-240Vac	DMX	.14.24

Colours on request with surchage: .01.07.09.20


dimensions

MEGAFOCUS

Code	Optic	Power	Rated luminaire luminous flux	Light source type	Power supply	Dimming type	Colour standard
S.1140N	10°	95W	8644lm	COB 4000K CRI 80	220-240Vac	DALI2; PUSH	.14.24
S.1140W	10°	95W	8393lm	COB 3000K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1140H	10°	95W	7973lm	COB 2700K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1141N	36°	95W	7752lm	COB 4000K CRI 80	220-240Vac	DALI2; PUSH	.14.24
S.1141W	36°	95W	7063lm	COB 3000K CRI 90	220-240Vac	DALI2; PUSH	.14.24
S.1141H	36°	95W	6709lm	COB 2700K CRI 90	220-240Vac	DALI2; PUSH	.14.24

Colours on request with surchage: .01.07.09.20
