Loft square
Rated luminaire luminous flux (lm):
210 lm - 2154 lm
X
Colour temperature:
Tipo Control type:
Standard beams:
Standard colours:
Number of products found: 15

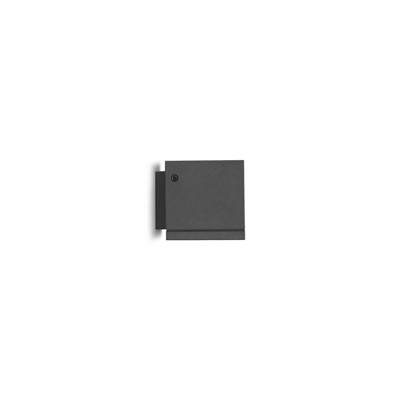

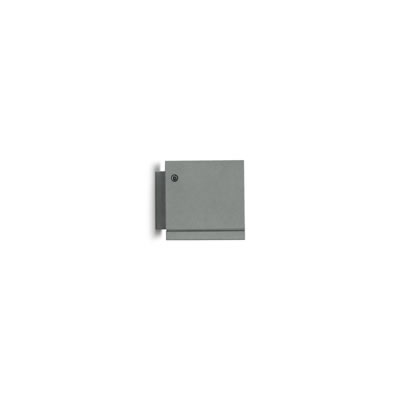

MICROLOFT SQUARE WALL
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.6625N |  |
13°x26° | 3.2W | 223lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6625W | |
13°x26° | 3.2W | 217lm | LED 3000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6625H | |
13°x26° | 3.2W | 210lm | LED 2700K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
Beam lenses available on request with no surcharge: 12°, 34°, 65°
Colours on request with surchage: .07.09.20

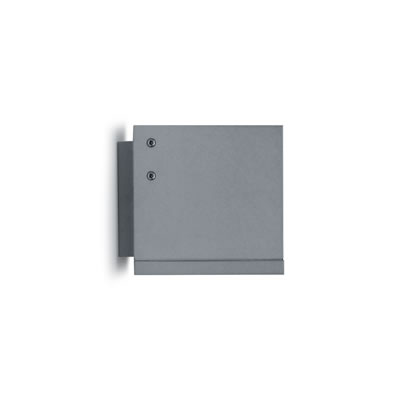

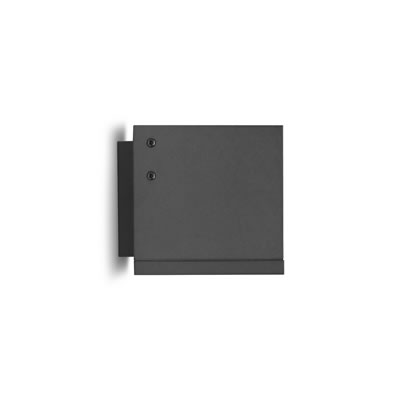

MINILOFT SQUARE WALL
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.6618N |  |
35° | 7.6W | 669lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6618W | |
35° | 7.6W | 649lm | LED 3000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6618H | |
35° | 7.6W | 560lm | LED 2700K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6655N |  |
13° | 7.6W | 734lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6655W | |
13° | 7.6W | 713lm | LED 3000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
| S.6655H | |
13° | 7.6W | 692lm | LED 2700K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.24 |
Beam lenses available on request with no surcharge: 63°, 10x44°
Colours on request with surchage: .07.09.20

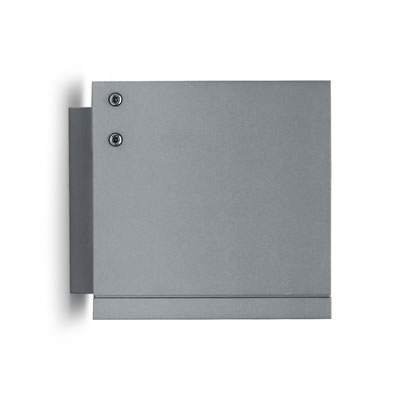

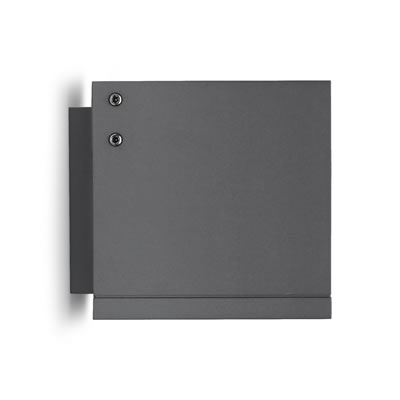

LOFT SQUARE WALL
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.6678N |  |
34° | 20.8W | 1918lm | LED 4000K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .01.14.24 |
| S.6678W | |
34° | 20.8W | 1863lm | LED 3000K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .01.14.24 |
| S.6678H | |
34° | 20.8W | 1808lm | LED 2700K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .01.14.24 |
| S.6695N |  |
13° | 20.8W | 2154lm | LED 4000K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .01.14.24 |
| S.6695W | |
13° | 20.8W | 2096lm | LED 3000K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .01.14.24 |
| S.6695H | |
13° | 20.8W | 2030lm | LED 2700K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .01.14.24 |
Beam lenses available on request with no surcharge: 63°, 10x44°
Colours on request with surchage: .07.09.20
