Pivot
Rated luminaire luminous flux (lm):
446 lm - 1487 lm
X
Colour temperature:
Power supply:
Tipo Control type:
Standard beams:
Number of products found: 16

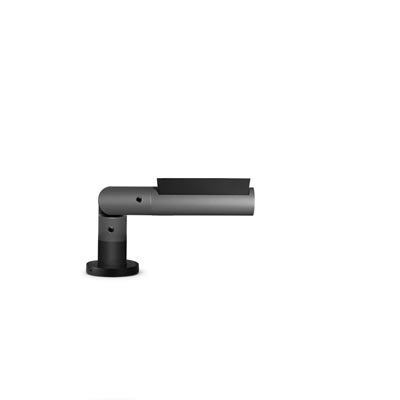

PIVOT 4 LED 850mA
Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
---|---|---|---|---|---|---|---|---|
S.1751N | 31° | 10.3W | 493lm | LED 4000K CRI 80 | Max. 850mA | -- | .24 | |
S.1751W | 31° | 10.3W | 470lm | LED 3000K CRI 90 | Max. 850mA | -- | .24 | |
S.1751H | 31° | 10.3W | 446lm | LED 2700K CRI 90 | Max. 850mA | -- | .24 |
Colours on request with surchage: .01.07.09.14.20
Optic available only in black color

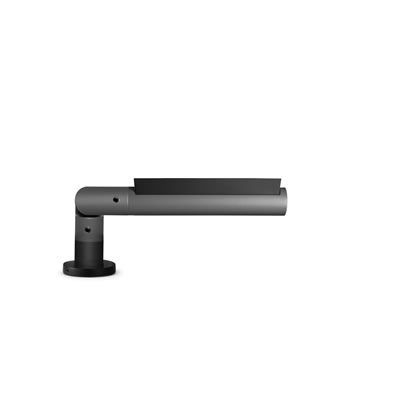

PIVOT 7 LED 850mA
Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
---|---|---|---|---|---|---|---|---|
S.1761N | 31° | 18.6W | 837lm | LED 4000K CRI 80 | Max. 850mA | -- | .24 | |
S.1761W | 31° | 18.6W | 798lm | LED 3000K CRI 90 | Max. 850mA | -- | .24 | |
S.1761H | 31° | 18.6W | 758lm | LED 2700K CRI 90 | Max. 850mA | -- | .24 |
Colours on request with surchage: .01.07.09.14.20
Optic available only in black color

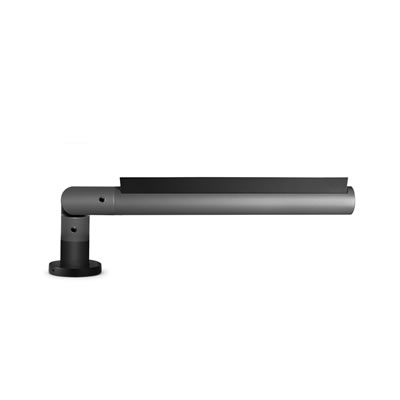

PIVOT 12 LED 850mA
Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
---|---|---|---|---|---|---|---|---|
S.1771N | 31° | 31.1W | 1487lm | LED 4000K CRI 80 | Max. 850mA | -- | .24 | |
S.1771W | 31° | 31.1W | 1417lm | LED 3000K CRI 90 | Max. 850mA | -- | .24 | |
S.1771H | 31° | 31.1W | 1346lm | LED 2700K CRI 90 | Max. 850mA | -- | .24 |
Colours on request with surchage: .01.07.09.14.20
Optic available only in black color

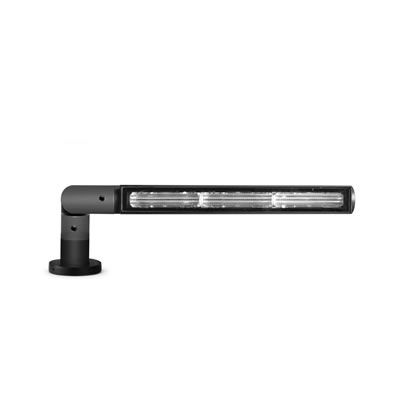

PIVOT TUNABLE WHITE 24V
Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
---|---|---|---|---|---|---|---|---|
S.1777T | 47°x97° | 17.1W | 597lm | LED TUNABLE WHITE 2700K-4000K CRI 90 | 24Vdc | PWM | .24 |
Colours on request with surchage: .01.07.09.14.20
Optic available only in black color

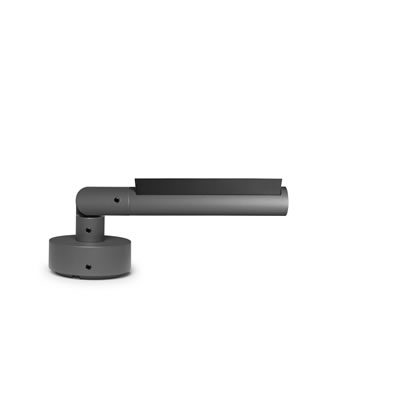

PIVOT 7 LED 230V
Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
---|---|---|---|---|---|---|---|---|
S.1766N | 31° | 24.4W | 837lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .24 | |
S.1766W | 31° | 24.4W | 798lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .24 | |
S.1766H | 31° | 24.4W | 758lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .24 |
Colours on request with surchage: .01.07.09.14.20
Optic available only in black color

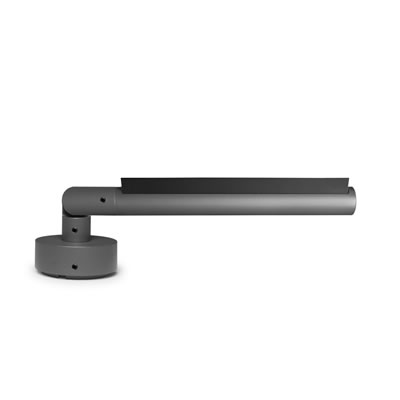

PIVOT 12 LED 230V
Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
---|---|---|---|---|---|---|---|---|
S.1776N | 31° | 33.6W | 1487lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .24 | |
S.1776W | 31° | 33.6W | 1417lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .24 | |
S.1776H | 31° | 33.6W | 1346lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .24 |
Colours on request with surchage: .01.07.09.14.20
Optic available only in black color
The range
PIVOT is available in different versions and applications.
Access to the code list of the type of your interest.
Access to the code list of the type of your interest.
