Outline

Filters
Rated luminaire luminous flux (lm):
3965 lm - 4888 lm X
Colour temperature:
Standard beams:
Standard colours:
Number of products found: 9

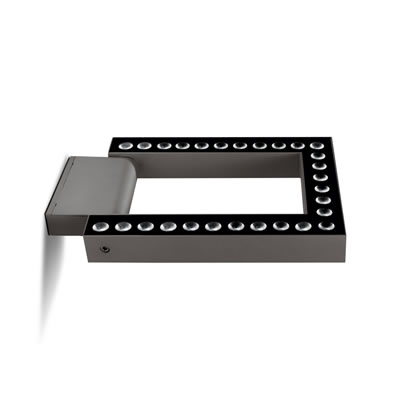

OUTLINE SPOT
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.3100N 10° 61W 4888lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.3100W 10° 61W 4461lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.3100H 10° 61W 4237lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.3101N 29° 61W 4732lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.3101W 29° 61W 4336lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.3101H 29° 61W 4119lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
Beam lenses available on request with no surcharge: 42°
Colours on request with surchage: .01.07.09.20

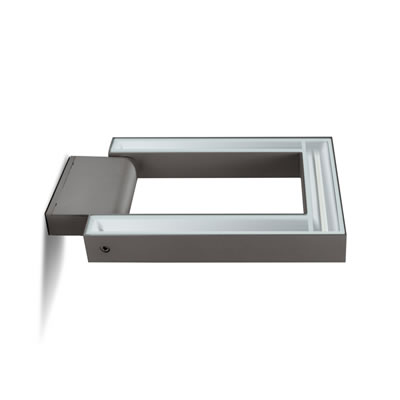

OUTLINE FLOOD
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.3105N 91°x116° 46W 4540lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.3105W 91°x116° 46W 4186lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.3105H 91°x116° 46W 3965lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
Colours on request with surchage: .01.07.09.20
The range
OUTLINE is available in different versions and applications.
Access to the code list of the type of your interest.
