Loft square

Filters
Rated luminaire luminous flux (lm):
70 lm - 1550 lm X
Colour temperature:
Tipo Control type:
Standard beams:
Standard colours:
Number of products found: 15

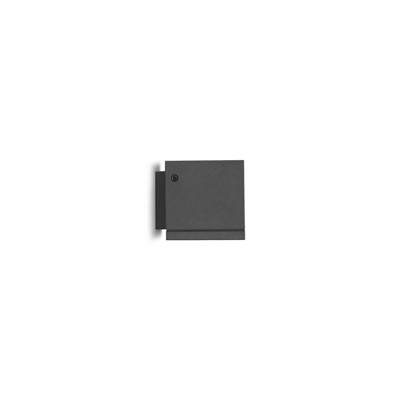

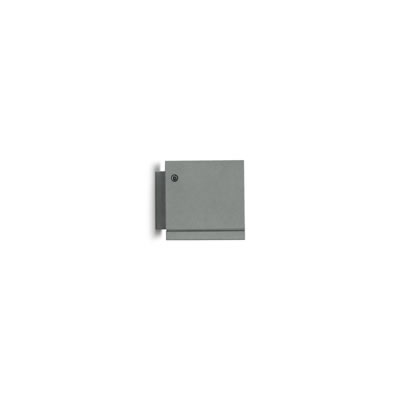

MICROLOFT SQUARE WALL
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.6625N 7°x28° 3.5W 80lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .01.14.24
S.6625W 7°x28° 3.5W 74lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14.24
S.6625H 7°x28° 3.5W 70lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14.24
Beam lenses available on request with no surcharge: 9°, 38°, 63°
Colours on request with surchage: .07.09.20

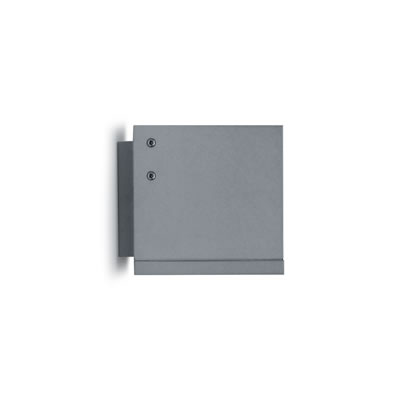

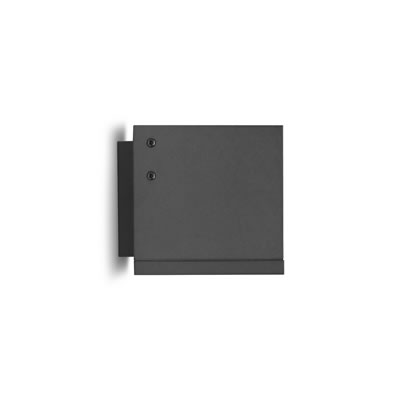

MINILOFT SQUARE WALL
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.6618N 31° 7.5W 512lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .01.14.24
S.6618W 31° 7.5W 465lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14.24
S.6618H 31° 7.5W 408lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14.24
S.6655N 12° 7.5W 577lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .01.14.24
S.6655W 12° 7.5W 509lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14.24
S.6655H 12° 7.5W 483lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14.24
Beam lenses available on request with no surcharge: 63°, 10x44°
Colours on request with surchage: .07.09.20

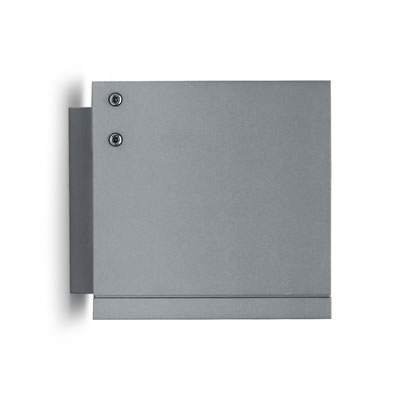

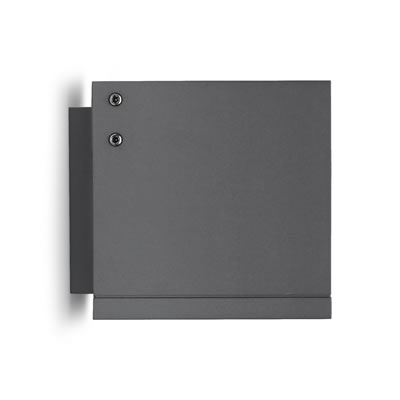

LOFT SQUARE WALL
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.6678N 31° 21.5W 1348lm LED 4000K CRI 80 220-240Vac DALI; DALI2; PUSH .01.14.24
S.6678W 31° 21.5W 1269lm LED 3000K CRI 90 220-240Vac DALI; DALI2; PUSH .01.14.24
S.6678H 31° 21.5W 1274lm LED 2700K CRI 90 220-240Vac DALI; DALI2; PUSH .01.14.24
S.6695N 12° 21.5W 1550lm LED 4000K CRI 80 220-240Vac DALI; DALI2; PUSH .01.14.24
S.6695W 12° 21.5W 1488lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14.24
S.6695H 12° 21.5W 1480lm LED 2700K CRI 90 220-240Vac DALI; DALI2; PUSH .01.14.24
Beam lenses available on request with no surcharge: 63°, 10x44°
Colours on request with surchage: .07.09.20
The range
LOFT SQUARE is available in different versions and applications.
Access to the code list of the type of your interest.
